Moulton NS MARATHON

(incl. Shipping)
Price on Application

The new generation of comfort and speed, the NS MARATHON features advanced Flexitor® front suspension, Hydrolastic® rear suspension, an extended Reynolds 953 stainless-steel seat post, and a lighter, stiffer, polished stainless steel frame.

Category:

Build Specification: 11 Speed (Shimano Alfine)

Features

Separable20" WheelsHydrolastic rear suspensionFlexitor front suspensionStainless frame

NS MARATHON

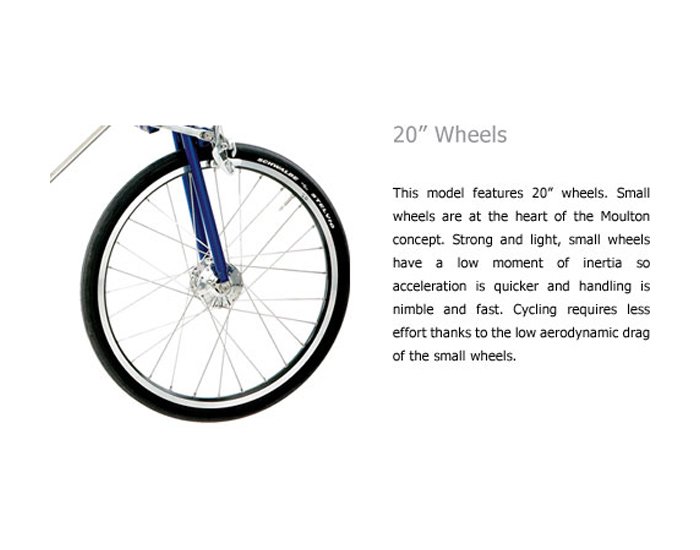

Wheel Size20″

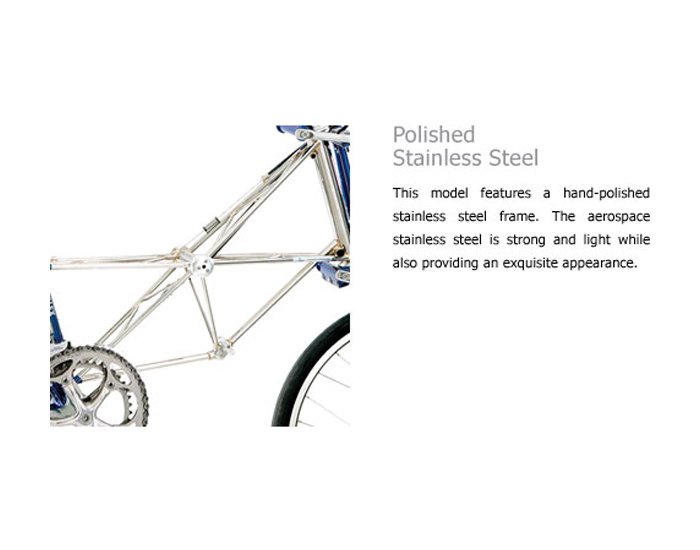

Frame‘Shot-in’ tube construction in aerospace stainless steel with Reynolds 853 steel forks. Silver fillet brazed by hand. [sizing]

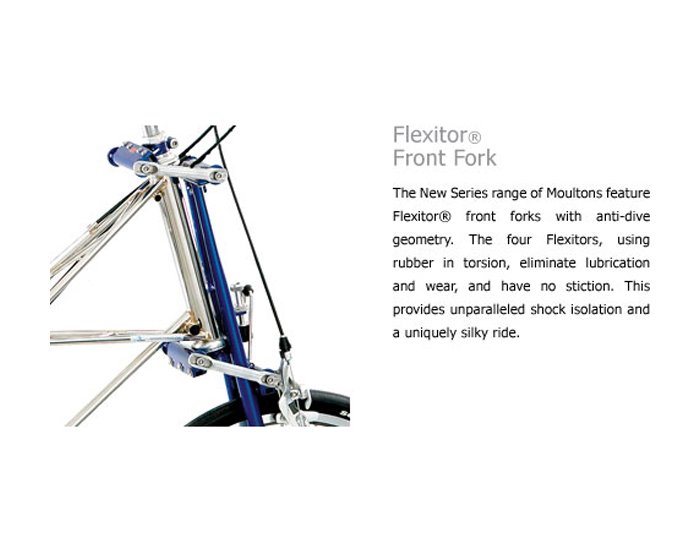

Front SuspensionMoulton Flexitor® (with adjustable bump-stop and soft lock-out)

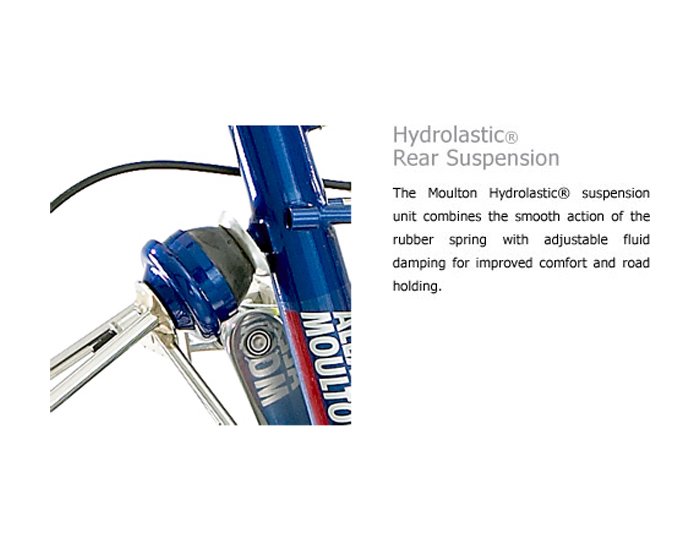

Rear SuspensionMoulton Hydrolastic®
SeparabilitySeparates into two halves via removal of kingpin. Front and rear forks are also easily removed to reduce packing size.
Frame FinishPolished stainless steel with painted ‘highlights’
Front Carrier…
Rear CarrierFits ‘Large Rear’ or ‘Day’ carrier
Colour [?]Painted highlight colour of choice [see colour chart]
Specifications

The table below gives an overview of the current Moulton NS MARATHON build specifications available.

NS MARATHON
Gears2411
SpecCampagnolo Super Record 11Shimano Alfine
Gear TypeDerailleurHub
HandlebarDrop: Deda Speciale classic drop (44 or 42)Flat: M special flat bar
Handlebar StemMoulton Wishbone Q (90, 140 or 160mm)Moulton Wishbone Q (90, 140 or 160mm)
Handlebar TapeBrooks leather tapeBrooks leather ‘slender’ grips
HeadsetGB Tange Levin Alloy 1″ thread, sealedGB Tange Levin Alloy 1″ thread, sealed
SeatpostMoulton 953, layback headMoulton 953, layback head
SaddleBrooks leather B17 TiBrooks leather B17 Ti
Brake LeversCampagnolo Super Record 11Tektro FL750
Gear LeversCampagnolo Super Record 11Shimano Alfine rapidfire
BrakesDP CNC sidepull 57 (for Moulton)DP CNC sidepull 57 (for Moulton)
Front MechCampagnolo Super RecordN/A
Rear MechCampagnolo Super RecordN/A
CranksetCampagnolo Super Record Carbon TiShimano Alfine 45t w/chainguard
Bottom BracketCampagnolo Ultra-Torque (ceramic)Shimano Hollowtech II
Cassette/SprocketMoulton CNC 10-30 12 speed CrMo/Ti/Al17t
ChainKMC Ti-NitrideConnex 1/2 x 3/32″ stainless
PedalsMKS Promenade q/rMKS Promenade q/r
Front hubMoulton custom forged 28h silver 70mmMoulton custom forged 28h silver 70mm
Rear hubMoulton custom forged 28h silverShimano Alfine 11 speed 32h silver
SpokesSapim Laser/Force butted (differential)Sapim Laser butted front/PG rear
RimsMoulton MT20, Black, CNC brake trackMoulton MT20, Black, CNC brake track
TyresSchwalbe One 28-406 (Kevlar bead)Schwalbe Durano (Kevlar) 28-406
MudguardsSuppliedSupplied
Mudguard ClearanceUp to 28mm tyre sectionUp to 28mm tyre section
Gear Range (inches) T= Touring, S= SportT = 26-99″ (53/39); S* = 29-108″ (58/44)25-106″ (45/17)
OptionsThreadless steering columnThreadless steering column
PricePrice Icon [?]Price Icon [?]
