Features
| XTB | |

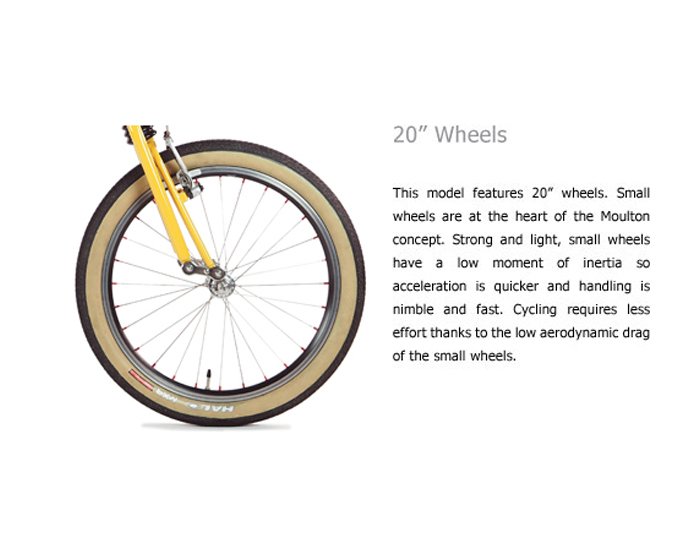

| Wheel Size | 20″ |

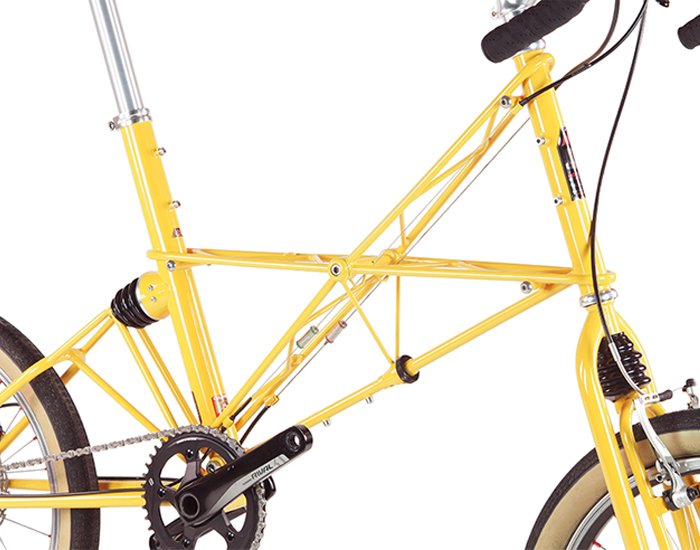

| Frame | Moulton space-frame, fillet-brazed construction in Columbus Spirit, Kaisei NiCrMo and Reynolds steels. Stainless-steel dropouts. [sizing] |

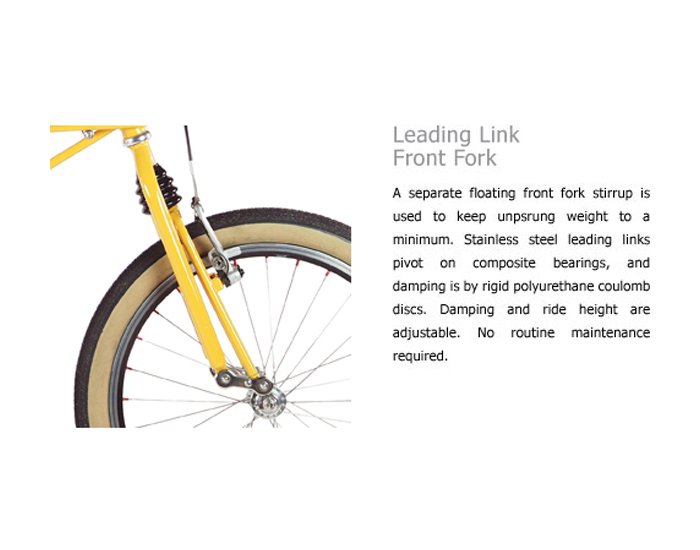

| Front Suspension | Moulton Leading Link (adjustable) |
| Rear Suspension | Moulton Monosphere (adjustable) |

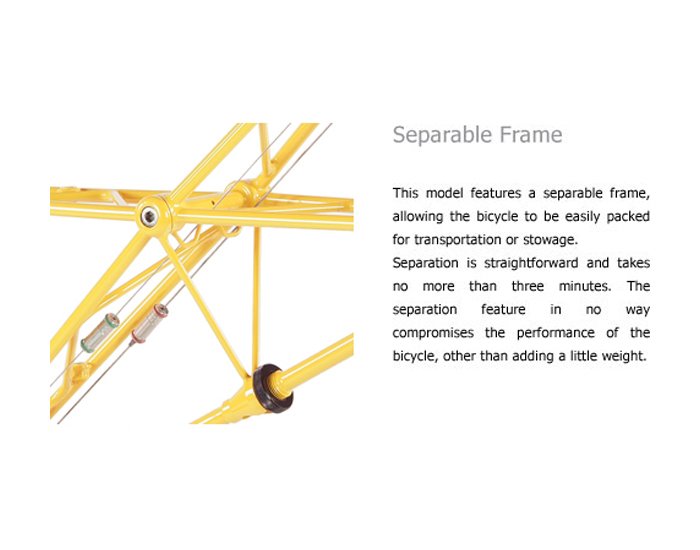

| Separability | Fixed or separates into two halves via removal of a centre ‘kingpin’ |
| Frame Finish | Painted |
| Front Carrier | Fit optional ‘Platform’ or ‘Pannier’ carrier |
| Rear Carrier | Fits optional ‘Luggage’ or ‘Day’ carrier |
| Colour [?] | Steely Grey or Camel Yellow |
Specifications
The table below gives an overview of the Moulton XTB build specifications available. To place an order, please contact your nearest Moulton dealer.
| XTB | |
| Model | XTB* |
| Gears | 11 |
| Spec | SRAM Rival 1 |
| Gear Type | Derailleur |
| Handlebar | Flat Bar: Moulton special silver, 520w; Drop bar: Deda Speciale classic (44) |
| Handlebar Stem | AL ahead stem (90, 110 or 135mm) |
| Handlebar Tape | Flat bar: Triple-density with bar end hooks; Drop bar: Brooks Cambium rubber |
| Headset | Tange Seiki RDC 1″ sealed |
| Seatpost | 31.6 CNC Aluminium, in-line (lightweight) |
| Saddle | Fizik Monte |
| Gear/Brake Levers | Flat Bar: SRAM Apex trigger; Drop Bar: SRAM Rival 1 |
| Brakes | Front: Shimano Deore |
| Front Mech | Rear: TRP Spyre disc |
| Rear Mech | SRAM Rival 1 (medium cage) |
| Crankset | SRAM Rival 1, 42t |
| Bottom Bracket | SRAM GXP |
| Cassette/Sprocket | Custom 9-36t, 11 speed |
| Chain | Connex 11sX |
| Pedals | None supplied |
| Front hub | Moulton custom forged 28h silver |
| Rear hub | Moulton custom forged 28h silver |
| Spokes | Sapim Laser/Force butted (differential) |
| Rims | Double wall Black, CNC brake track |
| Tyres | Halo/Moulton skinwall, 20 x 1.95 |
| Mudguards | Available as accessory |
| Mudguard Clearance | Up to 50mm tyre section |
| Gear Range (inches) | 23 – 93″ |
| Options | Wishbone stem (ahead type) |
| Price |  [?] |
| * The XTB Limited Edition is also available. This features an individually numbered headbadge, unique Brooks ‘AM’ leather saddle, and detachable pedals. It is available to purchase to commemorate the 30th anniversary of the launch of the original ATB. There is a limited number of 218 available. | |
