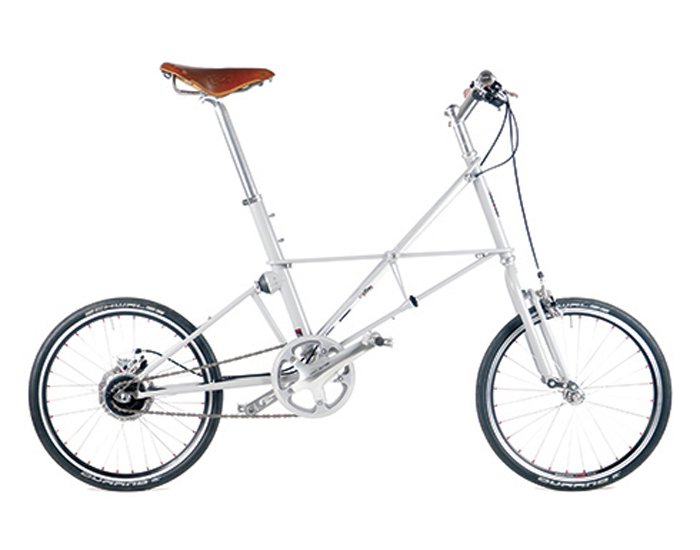

Moulton SST

(incl. Shipping)
Price on Application

A step on from the TSR, the SST features a new chainstay ‘X-brace’ frame reinforcement, with an adjustable mudguard mount. Frame weight has been reduced with a round-tapered chainstay, lighter rear fork upright tube, and smaller stirrup block height. Another superbly versatile model.

Category:

Build Specification: 11 speed (Shimano Alfine)
Smooth riding Moulton suspension combined with slick-shifting Alfine 11-speed internal hub gearing. Features narrow high-pressure tyres, a rear disc brake, leather grips and Brooks titanium saddle. Head-turning style and speed in the city.
Features

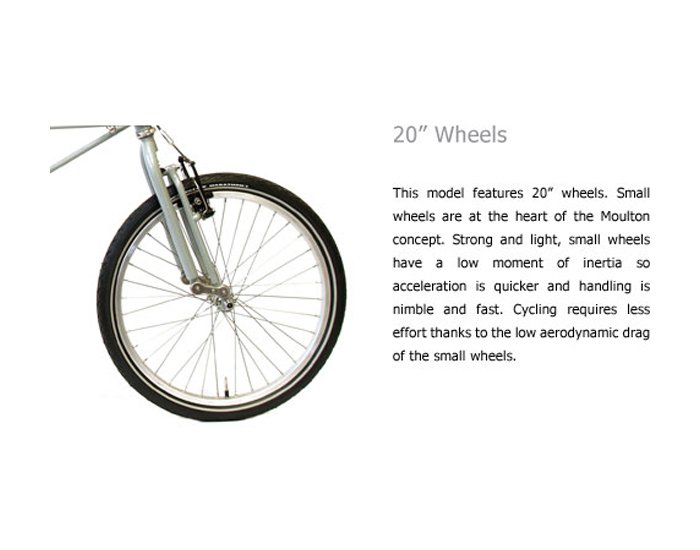

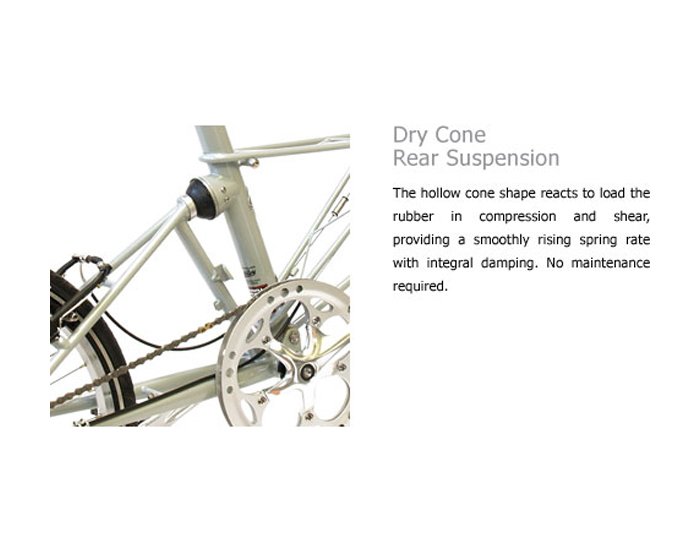

Separable20" WheelsDry Cone rear suspensionLeading Link front suspension

SST
Wheel Size 20″
Frame Columbus Spirit and Reynolds 525 CrMo steels, with stainless steel dropouts. Hairpin construction. Fillet brazed by hand [sizing].

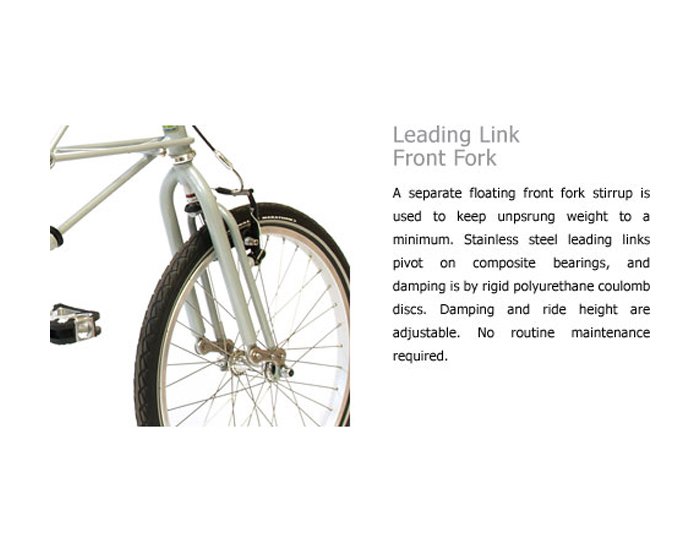

Front Suspension Moulton Leading Link
Rear Suspension Moulton Monosphere

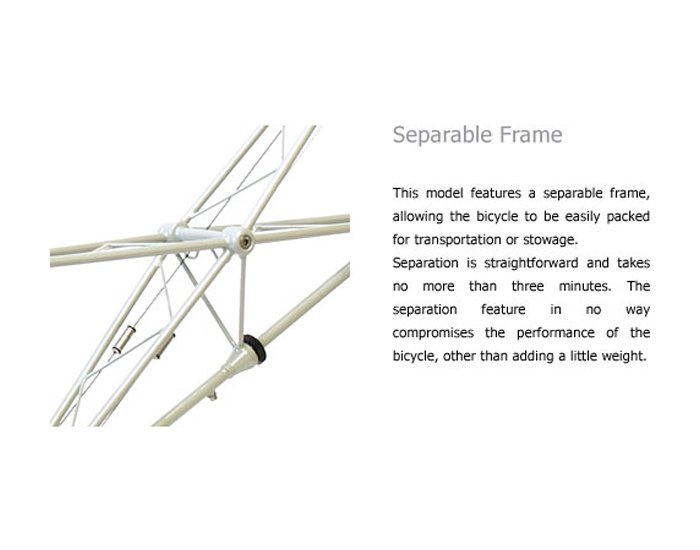

Separability Separates into two halves via removal of a centre ‘kingpin’
Frame Finish Powder coat
Front Carrier Fits optional ‘Pannier’ or ‘Platform’ Carrier
Rear Carrier Fits optional ‘Luggage’ or ‘Day Carrier’
Colours [?] Black, Airforce Blue, Britannia Red, or Forest Green
Specifications

The table below gives an overview of the current Moulton SST build specifications available.

SST
Gears 22 11 22
Spec Campagnolo Centaur Shimano Alfine Shimano 105
Gear Type Derailleur Hub Derailleur
Handlebar Drop: Deda Speciale classic drop (44 or 42) Flat: M special flat bar Drop: GB Carter Bar
Handlebar Stem AL ahead stem (90, 110 or 135mm) AL ahead stem (90, 110 or 135mm) AL adjustable stem 31.8
Handlebar Tape Deda perforated Brooks Leather slender grips. Deda perforated
Headset Tange Seiki RDC 1″ sealed Tange Seiki RDC 1″ sealed Tange Seiki RDC 1″ sealed
Seatpost 31.6 CNC Aluminium, in-line (lightweight) 31.6 forged Aluminium, layback head 31.6 forged Aluminium, layback head
Saddle Fizik Antares Brooks B17 Ti (honey) Fizik Aliante
Brake Levers Campagnolo Potenza 11 Tektro FL750 Shimano 105
Gear Levers Campagnolo Potenza 11 Shimano Alfine rapidfire Shimano 105
Brakes Tektro 521 DP 57 calliper 57 calliper front / TRP Spyre disc rear Tektro 521 DP 57 calliper
Front Mech Campagnolo Potenza N/A Shimano 105
Rear Mech Campagnolo Potenza N/A Shimano 105
Crankset Campagnolo Potenza 11 Shimano Alfine rapidfire Shimano 105
Bottom Bracket Campagnolo Ultra-Torque Shimano Hollowtech II Shimano Hollowtech II
Cassette/Sprocket Moulton 10-32 17T Moulton 10-32
Chain Connex 11sX Connex 1/2 x 3/32″ stainless Connex 11sX
Pedals None supplied MKS Promenade q/r None supplied
Front hub Moulton custom forged 28h silver Moulton custom forged 28h silver 70mm Moulton custom forged 28h silver
Rear hub Moulton custom forged 28h silver Shimano Alfine 11 speed 32h silver Moulton custom forged 28h silver
Spokes Sapim Laser/Force butted (differential) Sapim Laser butted front/PG rear Sapim Laser/Force butted (differential)
Rims Moulton MT20, Black, CNC brake track Moulton MT20, Black, CNC brake track Moulton MT20, Black, CNC brake track
Tyres Schwalbe One 28-406 (Kevlar band) Schwalbe One 28-406 (Kevlar band) Schwalbe One 28-406 (Kevlar band)
Mudguards Available as accessory Available as accessory Available as accessory
Mudguard Clearance Up to 32mm tyre section Up to 32mm tyre section Up to 32mm tyre section
Gear Range (inches) T= Touring, S= Sport T= 21-96″(52/36); S= 25-107″(58/44) extra cost 26-106″ (45/17) 23-99″ (53/39 only)
Options Wishbone stem (ahead type) Drop handlebar Flat handlebar; Wishbone stem (ahead)
Price Price Icon [?] Price Icon [?] Price Icon [?]
